Dimensions of the machine
Height: 500 mm
Width: 540 mm
Depth: 480 mm
Weight
35 Kg
Opening
Front door with lock + opening detection
Security
Stop button on front panel
Locking of the enclosure by key
Lock screen with password
Electronic protections
Connectivity
USB + SD + Ethernet

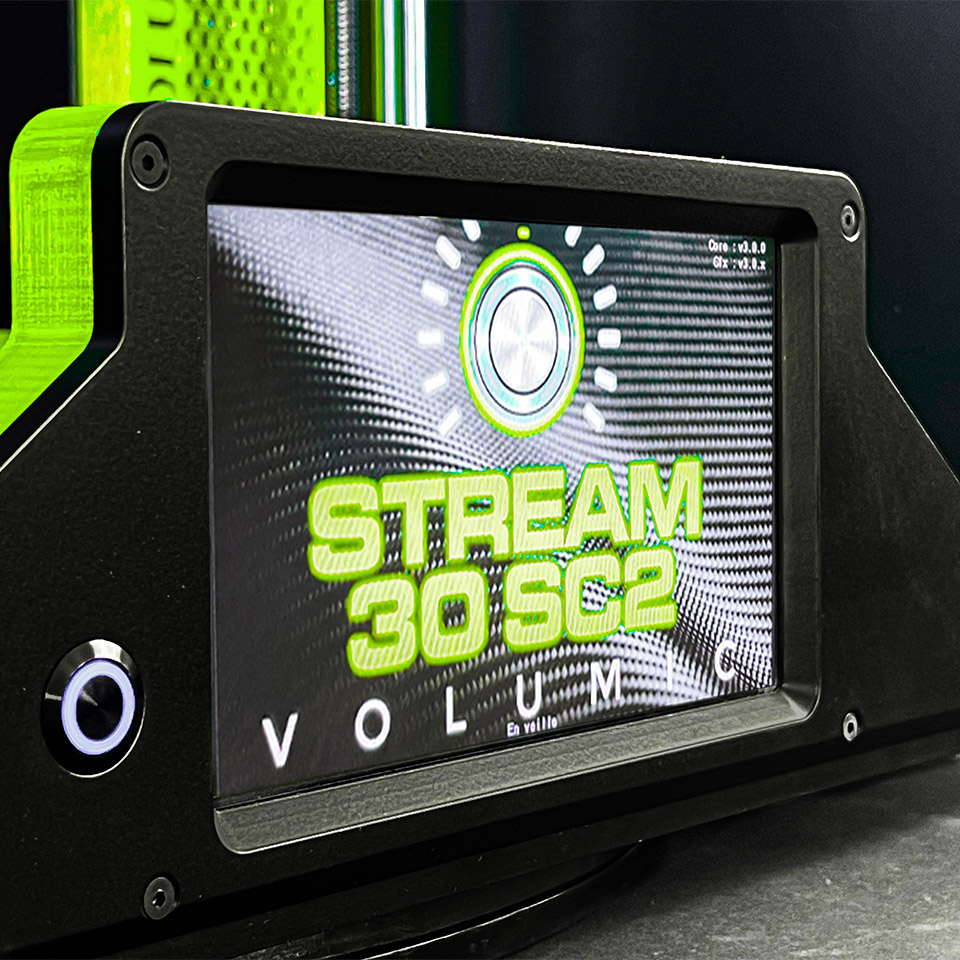

Control screen
7-inch capacitive touchscreen
Working volume dimensions
Height: 310 mm
Width: 300 mm
Depth: 200 mm
Work volume
18,6 L
Printing surface
Ceramic glass top with magnetic fastening
Nozzle
Copper nickel material (stainless steel option,…)
Original diameter 0,4 mm
Accuracy
X and Y axes: 15 microns
Z axis: 1 micron
Extrusion
1 extruder with filament end sensor
Overheating protection
Anti-Overall Disaster
Temperatures
Extruder: 400°C
Lit : 160°C
Extrusion rate up to
40mm3/s (0.4mm nozzle)
62mm3/s (0.8mm nozzle)
Software
Simplify 3D (optional)
Verify 3D
Colorify 3D
Cura
Volunet
Warranty
1 year
Transportation: 1 year
Filter cover
Optional (recommended)
Filters gases, particles and COV
ABEK 1 + HEPA
Tray
Flexible heated PEI with magnetic attachment
(compatible with flexible, aluminum, etc.)
Automatic calibration
Control
Color-coded visual alerts
LCD touch interface
Web interface
Workstation
Compatible with all Volumic workstations
Chamber temperature (with filter cover)
Passive heating of up to 60°C during printing
Maintenance
Predictive maintenance: on screen (maintenance advice)
Interchangeable head without tools
Box with machine
- USB cable and power supply
- 3D Lacquer
- Precision cutter
- Cutting pliers
- Complete tooling set
- Unclogging needles
- Safety gloves
- Peeling spatula
- Complete dematerialized documentation in French
- SD card with software and documentation
- USB SD card reader
- PLA Ultra spool
- Central reel
