Two independent print heads

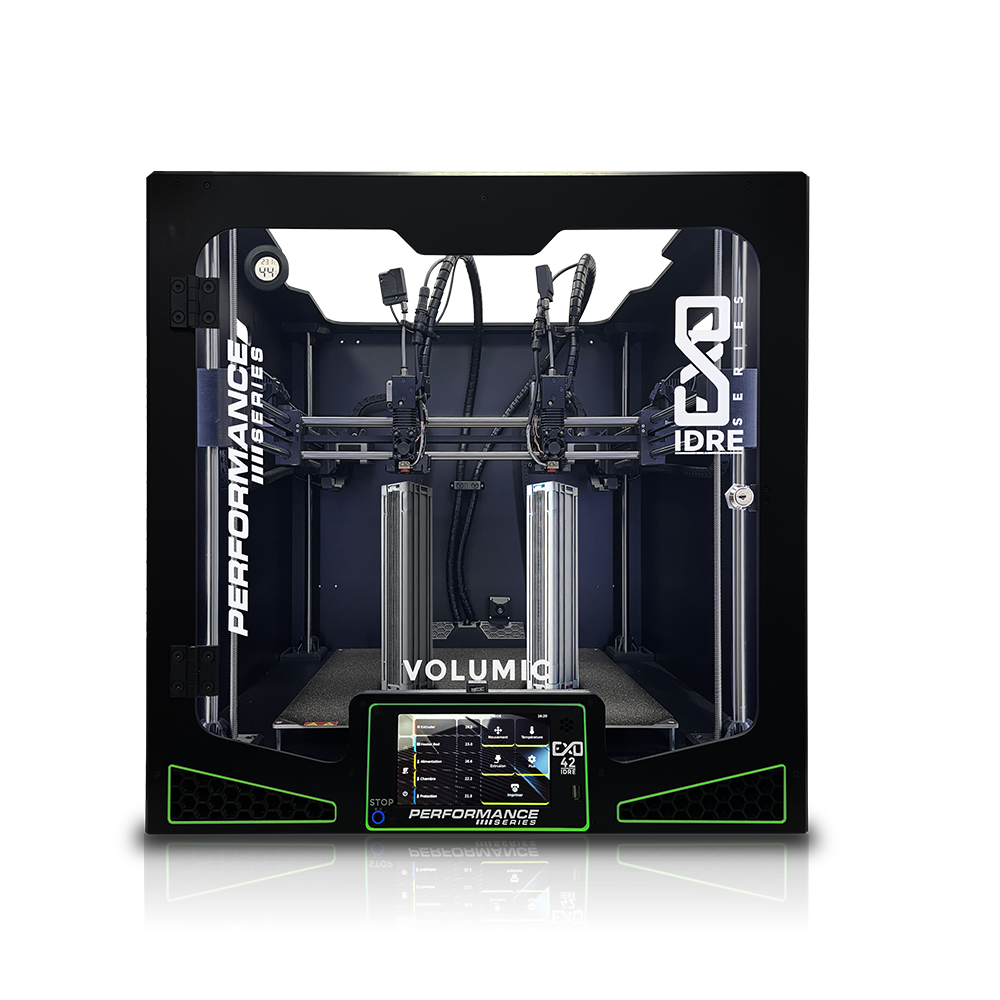

The EXO42+ IDRE features two independent print heads operating with the IDEX system, allowing for 5 different printing modes.
-
Mono
-
Dual
-
Soluble support
-
Replication
-
Mirror
EXO42+ IDRE
PREORDER
-10%
VENTES privées
The EXO42+ IDRE multiplies possibilities and doubles your productivity. It is also compatible with over 80 materials and more than 400 variations of colors/fillers.
The EXO42+ IDRE features two independent print heads operating with the IDEX system, allowing for 5 different printing modes.
The EXO42+ IDRE has a very large print volume of 36 cm in length, 42 cm in depth, and 42 cm in height.
Generation +
+ accessible, + high-performing, and + durable.
Discover our
generation +
The Volumic range evolves with the arrival of the + versions, marking a shift towards greater accessibility and performance by incorporating the M2 update.
Automatic
leveling
zero vibration
system
Improved
performance
Trajectory
correction
Extended software compatibility
Flexible tray
PEI
The greatest compatibility
Over 400 color variations
To meet all your needs
A complete range of accessories
for optimal use
Professional support
Volumic 3D printers are developed WITH and FOR the users. This co-development work ensures that we can address your needs with the utmost precision.
Made in France
As a pioneering brand in 3D printing in France with a strong commitment to 'Made in France,' our machines are designed and manufactured in France.
Unlimited applications
3D prints
3D prints
3D prints
3D prints
2200+ equipped sites in France
The EXO42 printer: "a great gem of technology"
Mathieu M. from MY3D
"Excellent value for money"
The SH65 printer: “A reliable and efficient desktop 3D printer”
Exceptional software compatibility
Windows, macOS, and Linux
Our machines are compatible with all leading CAD/CAM software such as SolidWorks, Catia, Topsolid, Rhino, 3dsmax, Sketchup, etc.
Included with the machine: the Repetier suite with Cura, Simplify3D (optional), Colorify, Verify3D, Volunet, as well as print profiles for all major printable materials available today in filament form.
Our printers are designed to provide you with the best possible experience, featuring an ergonomic interface that is regularly updated.
Committed and responsible actor
Compatible with all bio-sourced, biodegradable, and recyclable materials, Volumic printers are eco-built with aluminum and recycled materials, and they have a low electricity consumption.
Dimensions of the machine
Height: 660 mm
Width: 670 mm
Depth: 650 mm
Weight
64 Kg
Opening
2 front doors with lock + opening detection
Security
Stop button on front panel
Locking of the enclosure by key
Lock screen with password
Electronic protections
Connectivity
USB + SD + Ethernet
Control screen
7-inch capacitive touchscreen with audio
Working volume dimensions
Height: 420 mm
Largeur : 360 mm
Depth: 420 mm
Work volume
62 L
Printing surface
PEI bed with magnetic attachment
Nozzle
Copper nickel material (stainless steel option,…)
Original diameter 0,4 mm
Accuracy
X and Y axes: 15 microns
Z axis: 1 micron
Extrusion
2 extrudeur avec capteur de fin de filament
Overheating protection
Anti-Overall Disaster
Temperatures
Extruder: 400°C
Bed: 150°C
Extrusion rate up to
45mm³/s (0.4mm nozzle)
65mm³/s (0.8mm nozzle)
Software
Simplify 3D (optional)
Verify 3D
Colorify 3D
Cura
Volunet
Orca slicer
Warranty
1 year
Transportation: 1 year
Filter cover
Optional (recommended)
Filters gases, particles and COV
ABEK 1 + HEPA
Tray
Flexible heated PEI with magnetic attachment
(compatible with flexible, aluminum, etc.)
Automatic calibration
Control
Color-coded visual alerts
LCD touch interface
Web interface
Workstation
Available soon
Chamber temperature (with filter cover)
Passive heating of up to 60°C during printing
Maintenance
Predictive maintenance: on screen (maintenance advice)
Interchangeable head without tools
Box with machine
- USB cable and power supply
- 3D Lacquer
- Precision cutter
- Cutting pliers
- Complete tooling set
- Unclogging needles
- Safety gloves
- Peeling spatula
- Complete dematerialized documentation in French
- SD card with software and documentation
- USB SD card reader
- PLA Ultra spool
- Central reel
PLA, PLA-R
PETG, PET
ABS
TPU, TPE, TPC
WOOD
STONE
COPPER
BRONZE
BRASS
GOLDEN
LOST WAX
HIPS
PVA
Nylon
PC
PP, PPCF
PPT, PP5
ABS kevlar
ABS alumine
PA 6, PA 12,
PA 6 FIBERGLASS
Armadillo (kevlar)
ESD (Conductive)
PETg carbon
Medical class VI
Antibacterial
PLC
ASA
PHA
Glass
PMMA
POM
PEI
PEKK
PEKK-A
PEKK Carbon
PEEK
Steel 316L
Ceramic
Alumina
H13 steel
Silicon carbide
Zirconia
…
